Model S DAC :: Specifications


Inputs:
S/PDIF electrical, 75 Ohm unbalanced; BNC connectors (*);
transformer coupled, with capacitively coupled or floating ground

Sampling Frequency:
Up to 96kHz

Outputs:
Unbalanced (RCA) - transformer, directly or capacitively coupled,
and balanced (XLR) - transformer coupled;
2V RMS both

Output Impedance (20Hz-20kHz):
Transformer coupled output: ≤ 90 Ohm
Directly coupled output: ≤ 4 Ohm

Frequency Response:
Sin(x)/x equivalent:
@ fS=44.1kHz: 0dB @ 20Hz, -3.2dB @ 20kHz
@ fS=88.2kHz: 0dB @ 20Hz, -0.8dB @ 20kHz

Absolute Phase:
Correct

Transient Response:
Transient response is clean and damped, with no overshoot.
The pictures show 1kHz and 20kHz square waves, transformer coupled output.







Harmonic Distortion:

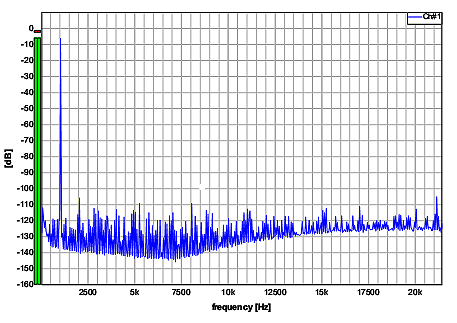

0.002% @ 1kHz, 50% full scale (-6dBFS)

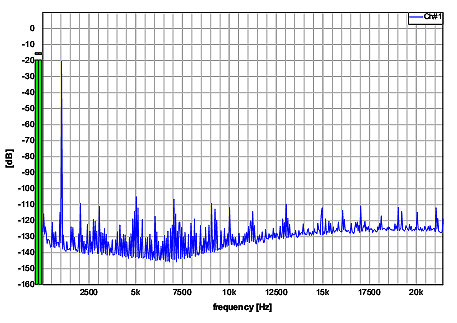

0.012% @ 1kHz, 10% full scale (-20dBFS)

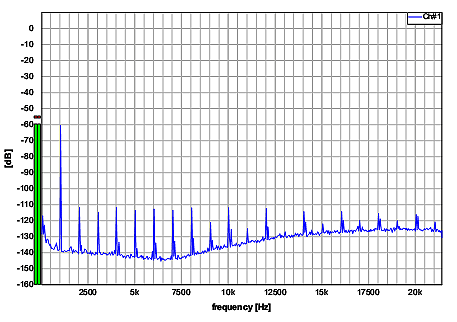

0.87% @ 1kHz, 0.1% full scale (-60dBFS)

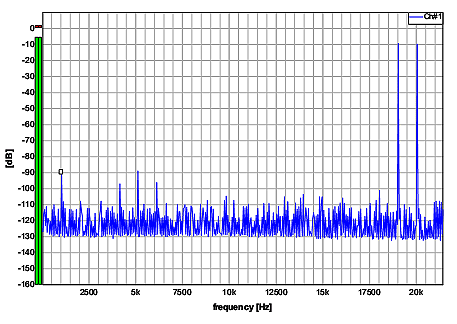

Intermodulation Distortion (CCIR):
0.009%




Mains voltage:
220-240VAC, 50-60Hz, IEC (C14) connector
110-120VAC, 50-60Hz is also available

Dimensions (W x D x H):
431.5 x 320 x 102 mm (including knobs, connectors and legs)
431.5 x 278 x 78 mm (excluding knobs, connectors and legs)

Net Weight:
